CASE STUDY: Adaptsil provides the solution for a major pharmaceutical group

In this case study, you will discover that this long-time customer was interested in our adapts capabilities. They have faced problems with leaks due to the heat variation that dilated inox (cold liquids + hot CIP) and the solution was costly because the company often had to go back to the welder to readjust the piece. The solution that they had was an Inox piece that was difficult to mount and heavy for operators.

Sector and customer

  • Liquids production
  • Major French Pharmaceutical group

In this case study we explain the following solutions provided:

3-branch Adaptsil



Context

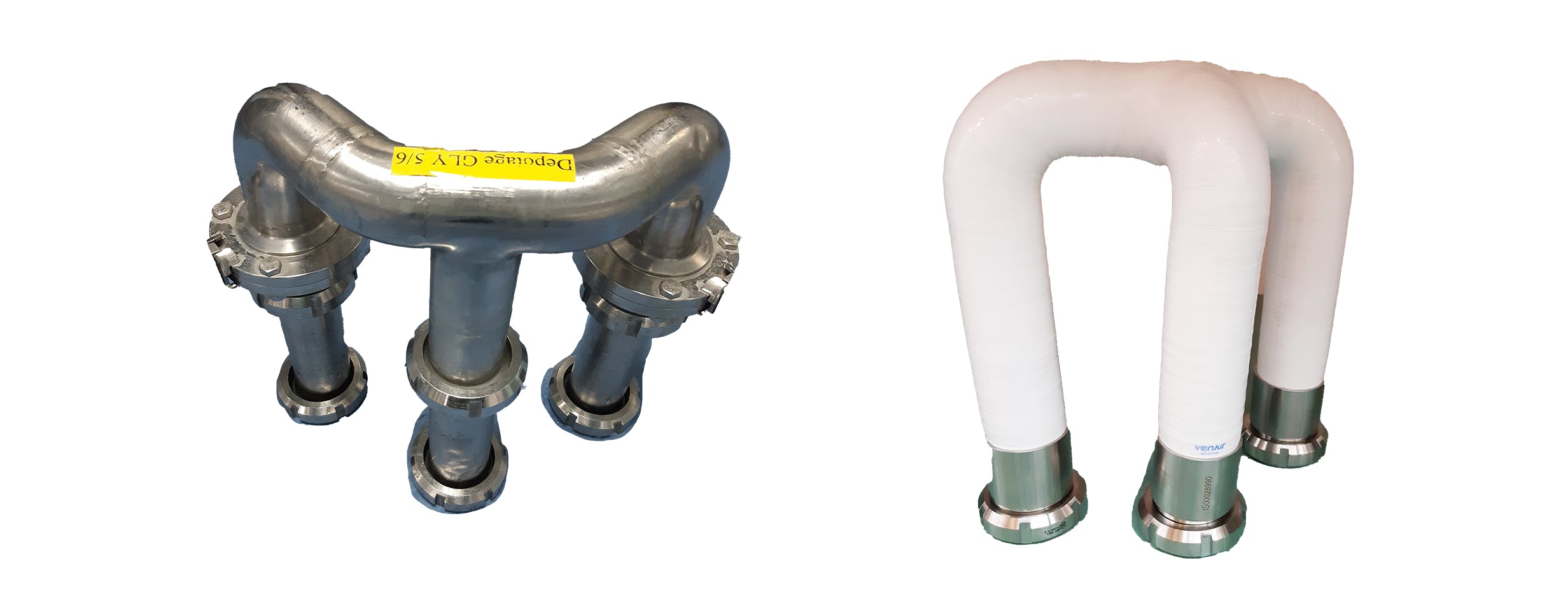

The customer was interested in our adapts capabilities. They have faced problems with leaks due to the heat variation that dilated inox (cold liquids + hot CIP) and the solution was costly because the company often had to go back to the welder to readjust the piece. The solution that they had was an Inox piece that was difficult to mount and heavy for operators.

Challenge faced

We had to design a part that could withstand temperature changes, and that was light enough to be assembled by the operators without difficulty.

The part was designed with different molds, which was a challenge for our engineers until they came up with the key part, adapted to all that was required.

For this reason, our engineers thought that the best solution to suit their needs was our Adaptsil, a custom-made flexible adaptor in FDA and USP VI platinum cured silicone specially designed for food and pharma processing.

Operating conditions

  • Temperature around 121°C for CIP, ambient T° for regular production
  • Pressure between 6-10 bars

Solutions implemented

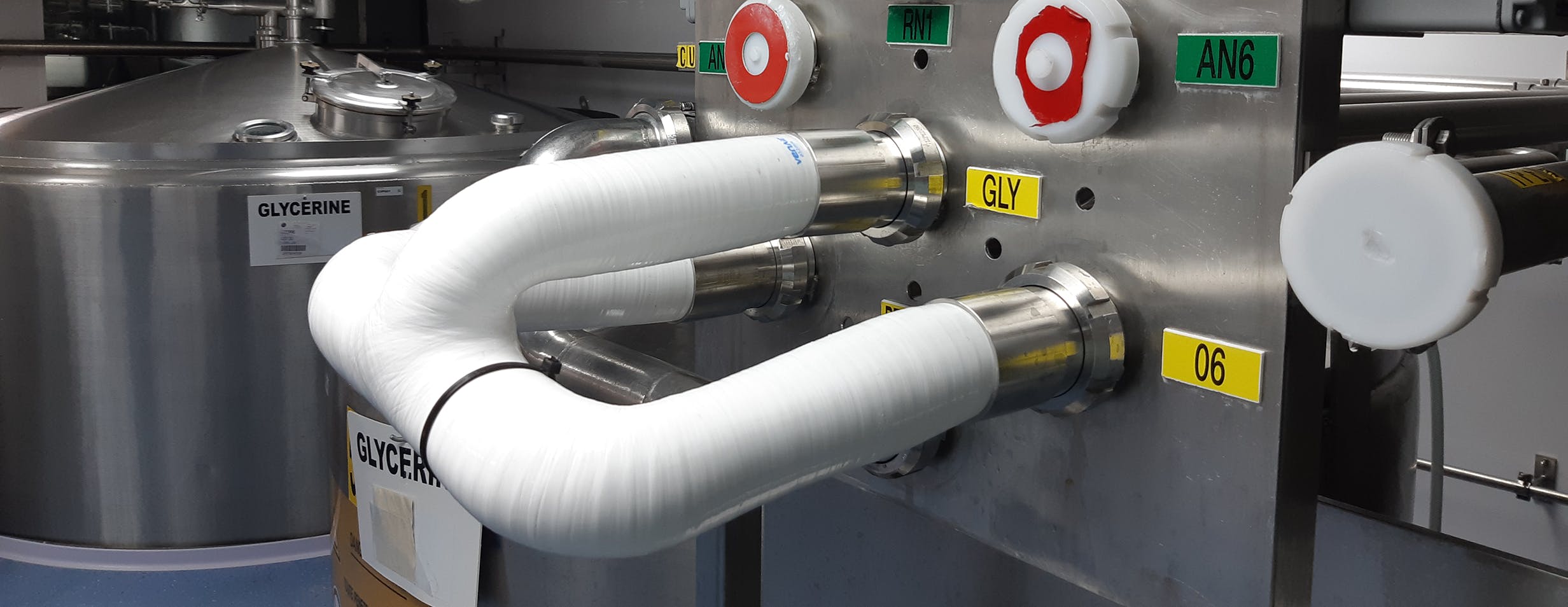

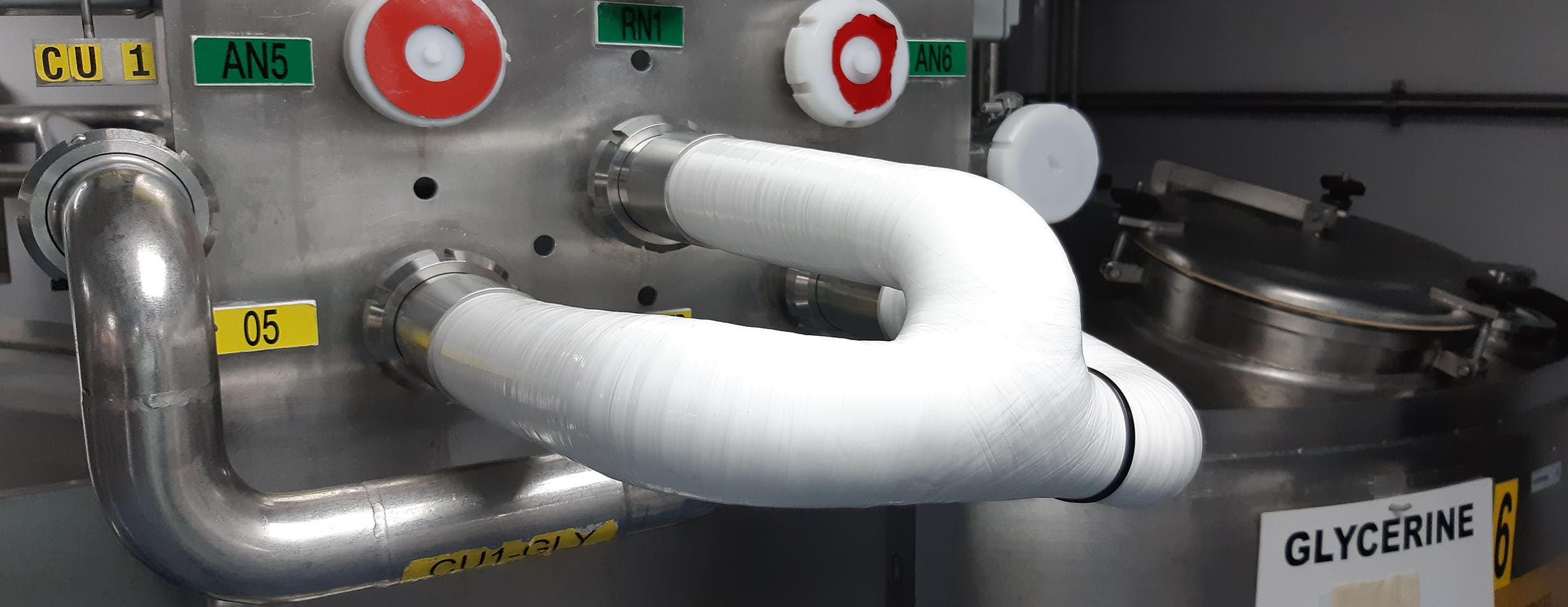

The solution implemented was a 3 branch Adaptsil®.

This solution is recommended to:

  • Compensate system vibrations as well as optimize the overall life of the hose or tube connections.
  • Solve handling system misalignments as well as increased ease in hose or tube installation.
  • Offer sound dampening characteristics in your process systems due to its elastic and flexible cons­truction

Benefits and ROI

The benefits of our part means less physical pain for the operators and they do not have to return to the welder to reshape the stainless steel part, as the silicone can absorb the heat and temperature changes.

Conclusion

Venair adapts to your needs designing and producing the perfect solution.

We will work with you until you are satisfied with the results.
